Details
Model：
Booling-Car Spoiler Mold-1
Mold Steel:
45#, P20, 718, 2738, H13, SKD11, S136, 7075AL, 6065AL, beryllium bronze, etc.
Plastic Material:
PC/ABS
Mold Base:
LKM, Booling standard
Origin：
China

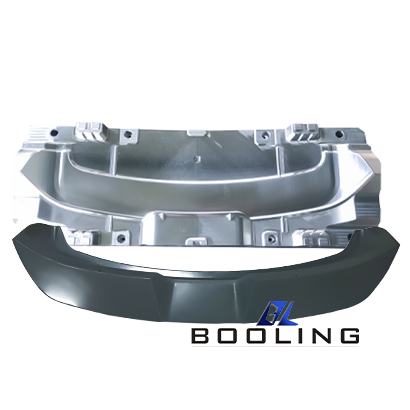

The car spoiler mold adopts CNC milling processing technology and uses the CNC milling machine processing center to control the machining trajectory of the milling cutter to achieve a high-speed, small-feed cutting method to ensure machining accuracy. The car spoiler is a precision automobile part with high requirements for appearance, improving the smoothness of the vehicle model and meeting aerodynamic requirements. Booling can customize the shape and surface appearance of the tail wing to meet customers’ personalized needs.
Application：
- Car Spoiler Mold
- Blow Molding
Related Hot Products
Technical Parameters Of Car Spoiler Mold
Booling car spoiler mold production has a high degree of automation, achieving fast and precise processing.
| Model | Booling-Car Spoiler Mold-1 |
|---|---|
| Number of cavities | 1 or multi-cavity |
| Mold base | LKM, Booling standard |
| Process type | Injection molding, blow molding |
| Steel hardness | HRC28-HRC60 |
| Mold heat treatment | Vacuum quenching, tempering, nitriding, etc. |
| Mold life | 500,0000-2,000,000 times |
| Mold size | Depends on car spoiler desgin and injection machine |
| Mold weight | Depends on car spoiler desgin and injection machine |
| T1 | 30-60 days |
| Processing method | Grinding machine, drilling machine, CNC, EDM, high-speed finishing, deep hole drilling, wire cutting, etc. |
| Design software | AutoCAD, UG, Moldflow |
| Injection runner | Cold runner/hot runner |
| Injection gate | Direct gate, point gate, latent gate, fan gate, bull-horn gate, etc. |
| Sample quantity | 3-5 pieces |
| Processable surface roughness | 0.8μm |
| Dimensional accuracy | ±0.02mm |
| Quotation method | Send samples, send sample pictures with dimensions, car spoiler 3D drawings. |
| Mold packaging | Wooden box |
| Mold accessories | Free |
| MOQ | 1 piece |
| Ejection method | Ejector, stripper, etc. (using hydraulic, cylinder, air valve, etc.) |
| Price Term | FOB, CIF |
FAQ for Car Spoiler Mold
BOOLING provides the most common questions when purchasing car spoiler molds. Users can learn more through FAQ, or contact our engineers for a one-on-one communication.
Car Spoiler Mold Model
Booling provides car spoiler mold processing for the car manufacturing and modification industries to improve the safety and stability of car driving.
-Car Manufacturing
In the manufacturing industry, there is a great demand for car spoilers in high-end and racing cars. Molds can achieve mass production and processing accuracy. During driving, especially at high speeds, the spoiler can increase the car’s stability and improve the safety of driving on curves.
-Car Modification
In car modification, users pay more attention to the beauty and personalization of the car spoiler. The use of molds can accurately and quickly produce car spoilers, realize the customization of shape, color, and surface pattern, and ensure safety during use.
Processing of Car Spoiler Mold
The car spoiler has high requirements for precision and surface. Booling achieves precision processing of the final product through the precise design of each system and structure.
- Casting system: Booling determines the type and number of gates according to the structure, shape, and size of the car spoiler. Booling uses point gate processing to increase the shear rate and ensure the surface quality of the spoiler processing. The flow channel surface is smooth to reduce the flow resistance of the melt.
- Positioning system: Select a suitable reference plane or reference line as the positioning reference of the mold, and use cylindrical pins, conical pins, and positioning keys to achieve more precise positioning.
- Cooling system: The cooling time during the processing accounts for more than 60% of the total time. The shape of the car spoiler is complex, and the uniformity of cooling should be ensured during the processing.
- Exhaust system: Booling selects parting surfaces, ejectors, inserts, and other components for exhaust according to where gas may gather in the mold. Design the size and number of exhaust holes according to the exhaust volume to ensure that the gas is completely and effectively discharged
- Ejection mechanism: Design the ejection mechanism and ejection form according to the shape and size of the spoiler, such as push rod, push plate, and other ejection methods to ensure that the product can be ejected smoothly and not scratched
Packaging and Delivery of Car Spoiler Mold
Molds are precision processing tools, so Booling will take certain protective measures when packaging and shipping.
- Booling will customize a set of wooden boxes for each mold to ensure that the size and thickness can fully support the mold and avoid mold displacement and collision
- Fill the wooden box with materials such as pearl cotton, foam, and plastic bags to prevent collisions during transportation
- Use cranes, forklifts, and other equipment to load the packaged molds smoothly
- Choose road, rail, sea, or air transportation according to customer requirements or cargo characteristics
- The mold needs to be shipped with a shipping list, stating the mold’s accessories, size, specifications, assembly and maintenance methods, etc.
